Using Sublabels for associating classes to a parent label

What are Sublabels?

Sublabels are useful for having classes associated with higher level instances. Example: drawing rectangles around birds for object detection, but having a class for types of bird within the rectangle (Duck, Geese, etc...).

Adding Sublabels to your Label Definition

Sublabels are available for the Bounding Box (Rectangle) and Instance Segmentation (Polygon) label types
  1. 1.

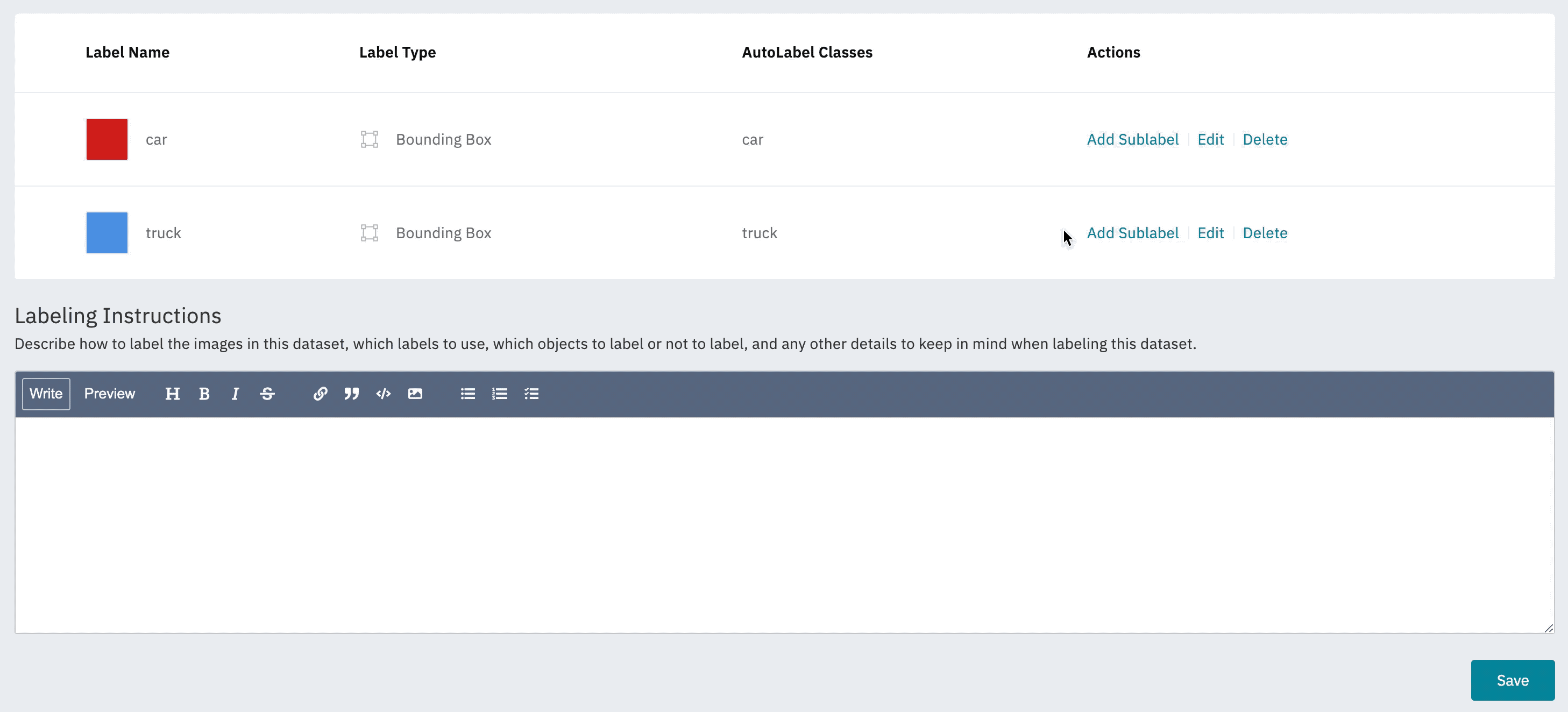

    Navigate to the "Label Definitions" tab of your dataset.
  2. 2.
    Find the Bounding Box or Instance Segmentation label type you want to add a Sublabel to.
  3. 3.
    Click "Add Sublabel"
  4. 4.
    Type a sublabel name
  5. 5.
    Choose sublabel type (Text, Classification, or Multi Classification)
  6. 6.
    Fill out label options/classes
  7. 7.
    Click "Save"
